8M 60W Laydhka Waddada Cadceedda oo leh Sawirka Gel Battery

8M 60W Laydhka Waddada Cadceedda oo leh baytariga jel

Sharaxaad Gaaban:

Awoodda: 60W

Qalabka: Aluminium-ka-dhiman

Chip LED: Luxeon 3030

Waxtarka Iftiinka:>100lm/W

CCT: 3000-6500k

Xagasha Daawashada: 120°

IP: 65

Deegaanka shaqada: 30 ℃ ~ + 70 ℃

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

FAA'IIDOOYINKEENA

-Xakamaynta tayada adag
Warshadayada iyo alaabadayadu waxay u hoggaansamaan inta badan heerarka caalamiga ah, sida Liiska ISO9001 iyo ISO14001. Waxaan kaliya u isticmaalnaa waxyaabo tayo sare leh oo loogu talagalay alaabadayada, kooxdayada QC ee khibradda leh waxay kormeeraan nidaam kasta oo qoraxda leh in ka badan 16 tijaabooyin ka hor inta aysan macaamiisheenu helin.

-Waxsoosaarka Toosan ee Dhammaan Qaybaha Muhiimka ah
Waxaan soo saareynaa muraayadaha qoraxda, baytariyada lithium-ka, nalalka hogaanka ah, tiirarka iftiinka, rogrogayaasha dhammaanteen nafteena, si aan u hubinno qiimaha tartanka, bixinta degdegga ah iyo taageero farsamo oo degdeg ah.

-Wakhti iyo Hufnaan Adeeg Macmiil
Waxaa la heli karaa 24/7 emaylka, WhatsApp, Wechat iyo taleefanka, waxaan ugu adeegnaa macaamiisheena koox iibisa iyo injineero. Xirfad farsamo oo xooggan oo ay weheliso xirfado isgaarsiineed oo luuqado badan leh ayaa noo suurtagelinaysa inaan jawaabo degdeg ah ka bixinno badi su'aalaha farsamada macaamiisha. Kooxdayada adeeg ayaa had iyo jeer u duula macaamiisha oo ku siiya taageero farsamo goobta.

MASHRUUCA

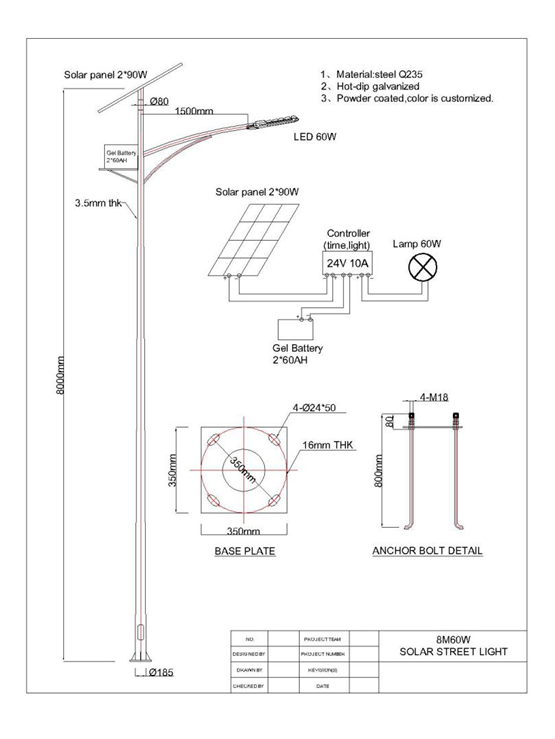

8M 60W SOLAR LED LAYDKA

Awood	60w
Qalab	Aluminium-ka-dhiman
Chip LED	Luxeon 3030
Waxtarka Iftiinka	>100lm/W
CCT:	3000-6500k
Xagasha Daawashada:	120°
IP	65
Deegaanka Shaqada:	30 ℃ ~ + 70 ℃

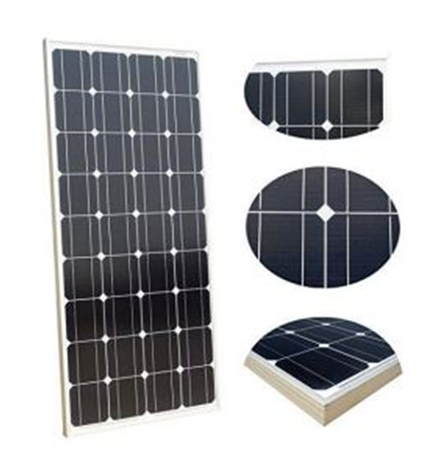

MONO SOLAR PANEL

Module	90W*2
Encapsulation	Muraayadaha/EVA/Cunuga/EVA/TPT
Waxtarka unugyada qorraxda	18%
Dulqaad	± 3%
Voltage at max power(VMP)	18V
Waqtiga xaadirka ah ee ugu sarreeya (IMP)	5.12A
Voltaga wareegga furan (VOC)	22V
Xilliga wareegga gaaban (ISC)	5.62A
Diodes	1 dhaaf-dhaaf
Heerka Ilaalinta	IP65
Ku shaqee temp.scope	-40/+70 ℃
Qoyaanka qaraabada	0 ilaa 1005

Dammaanadda: PM kama yara 90% 10 sano gudahood iyo 80% 15 sano gudahood

BATTERY

Voltage lagu qiimeeyay	12V
Awoodda la qiimeeyay	60Ah*2pcs
Qiyaasta Miisaanka (kg, ± 3%)	18.5KG*2pcs
Terminalka	Cable (2.5mm²×2 m)
Kharashka ugu badan ee Hadda	10 A
Heerkulka deegaanka	-35-55 ℃
Cabirka	Dhererka (mm, ± 3%)	350mm
	Ballaca (mm, ± 3%)	166mm
	Dhererka (mm, ± 3%)	174mm
Kiis	ABS

damaanad: 3 sano

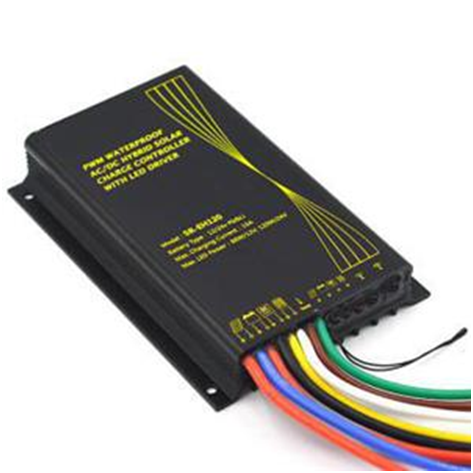

10A 12V kontaroolka qoraxda

danab shaqeeya oo la qiimeeyay	10A DC24V
Max. soo daynta hadda	10A
Max. ku dallaca hadda	10A
Kala duwanaanshaha danabka soo baxay	Qaybta ugu badan / 24V 300WP qoraxda
Saxnaanta hadda joogta ah	≤3%
Waxtarka joogtada ah ee hadda jira	96%
heerarka ilaalinta	IP67
hadda wax-load ah	≤5mA
Ilaalinta korantada ee xad-dhaafka ah	24V
Ilaalinta korantada ee xad-dhaafka ah	24V
Ka bax ilaalinta korantada ee xad dhaafka ah	24V
Cabbirka	607622MM
Miisaanka	168g

damaanad: 3 sano

CULUS

Qalab	Q235
Dhererka	8M
Dhexroorka	80/185mm
Dhumucda	3.5mm
Cudud Fudud	602.51500mm
Barroosin Bolt	4-M18-800mm
Flange	35035016mm
Daaweynta Dusha sare	Dheef kulul galvanized+ Dahaarka budada
Dammaanad	20 Sano
